Product overview

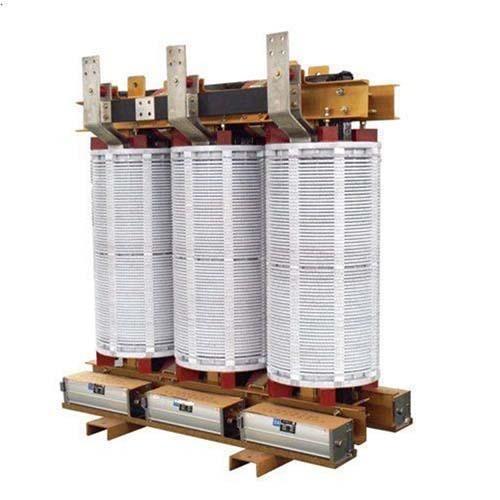

The dry-type transformer is one of our mature products, which are manufactured in accordance with international and domestic market applications. SG series single-phase and three-phase dry-type transformer adopts high-quality material and advance technology, it has advantages of damp proof and convenient maintenance, it can be applied to such power transmission and distribution places like underground railway, the high building, airport, station, wharf, enterprise, tunnel, etc.

It is mainly used in power supply occasions of AC 50~60Hz and voltage less than 500V. All the input and output voltage, connection group, and capacity of tapped winding can be designed and produced according to user requirements.

Standard

Low-cost alternative to the equivalent isolation transformer

ANSI & NEMA Std

High-efficiency performance for cost-effective of operation

Suitable for three-phase voltage transformation in commercial, industrial and institutional

Ratings from 100 to 2500KVA

Input has 2.5% FCAN and FCBN Taps

UL recognized components for safe, quiet and reliable operation

Units are designed and built-in compliance with ANSI and NEMA standards

Other capacities, voltage or frequency ratings can be made available upon request

Nema 1, fully detachable enclosure"

Working environment

1. Ambient temperature: -10° C~+40°C

2. Altitude: <1000m

3. Relative humidity: <90%

4. The installation site should be no gas, steam, chemical deposition, dust, or dirt that will affect transformers' insulation seriously, also explosive or corrosive medium is not 1llowed.

5. If any special working conditions are not in line with the above stipulations, the user shall negotiate with us."
