    AIS Electrical LV Panel 6KV Indoor Switchgear

    Ask Lasest Price
    Brand Name : KNKONG
    Model Number : KYN28
    Certification : ISO IEC GB
    Price : USD 10000-20000 Each
    Payment Terms : L/C, T/T
    Supply Ability : 500 unit per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    AIS Electrical LV Panel 6KV Indoor Switchgear

    Switchgear 11KV switchgear metal clad power switchgear MV switchgear panel

    11KV switchgear metal clad power switchgear MV switchgear panel

    KYN28 metal-enclosed switchgear,
    Knkong,ABB or Schneider inside
    3.6-24KV, three-phase, AC 50/60Hz
    Can be equipped with VS1 VD4 3AH5 ZN65A VB2 VCB
    Meets IEC standard
    Send us your SLD (Single Line Drawing) or requirements to get the price
    Inquire

    Product Introduction

    General

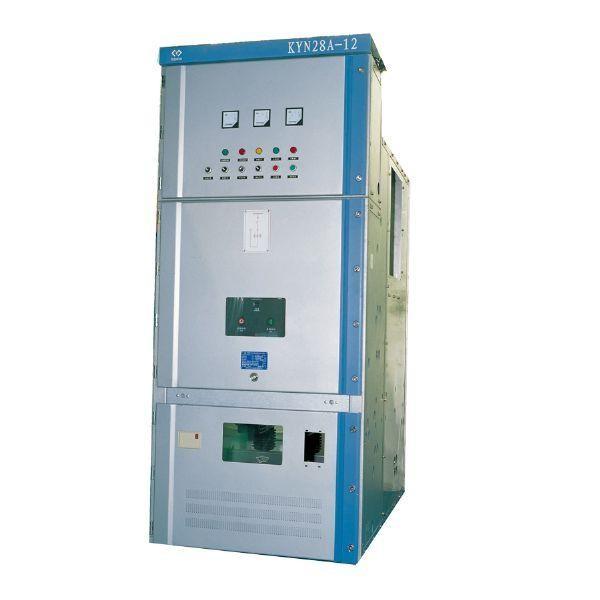

    KYN28A-12 metal armored central removable switchgear is a complete set of power distribution equipment for three-phase AC 50Hz, rated voltage 3.6-12kV single bus and single bus section system. It is mainly used in power plants, substations, transformation and distribution centers of industrial and mining enterprises, and large high-voltage motor starting equipment, etc., for receiving and distributing electric energy, and for controlling, protecting and monitoring circuits.


    Using environment
    No obvious pollution by dust, smoke, corrosive and/or flammable gas, steam, or salt spray;

    Pollution level: level Ⅱ;
    A place without severe vibration;
    The amplitude of electromagnetic interference induced in the secondary system is less than 1.6kV;
    Special environment: When the above allowable use environment conditions are exceeded, please consult with the manufacturer for ordering.

    Technical data

    No.ItemUnitParameter
    1Rating voltagekV3.6~24
    2Rating frequencyHz50/60
    3Rating current

    A

    630,1250,1600,2000,2500,3150,4000

    4

    Branch busbar Rated current

    630,1250,1600,2000,2500,3150,4000


    5

    Main busbar Rated current

    630,1250,1600,2000,2500,3150,4000


    6

    1min Power frequency withstand voltagewet

    KV

    3850/60

    dry


    48


    60/65


    7

    Lightning impulse withstand voltage

    kV


    75


    95/125


    8

    Rated short circuit breaking current (peak)

    KA


    40/50/63/80/100


    9

    Short time withstand current(4s)

    20/25/31.5/40

    10Protection typeIP4X for housing
