Description

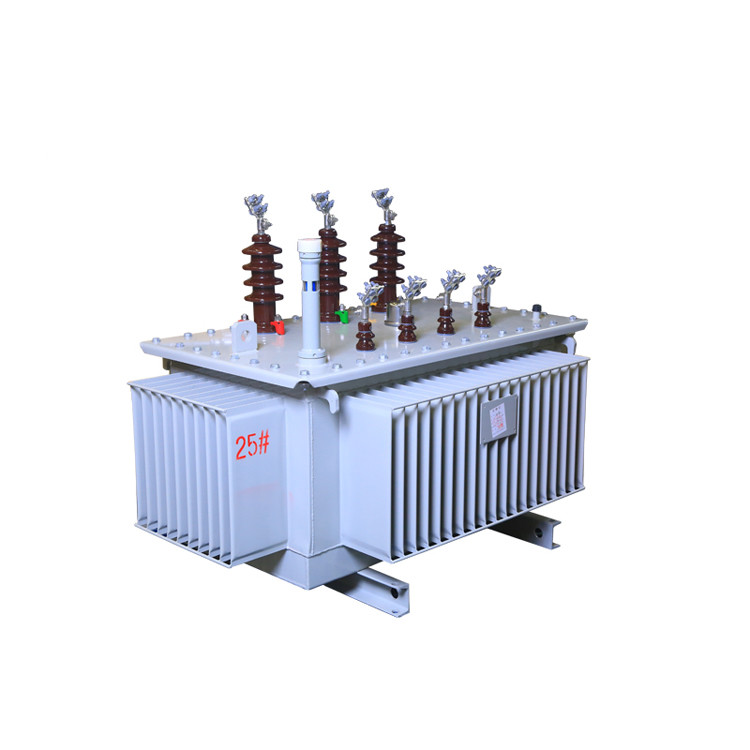

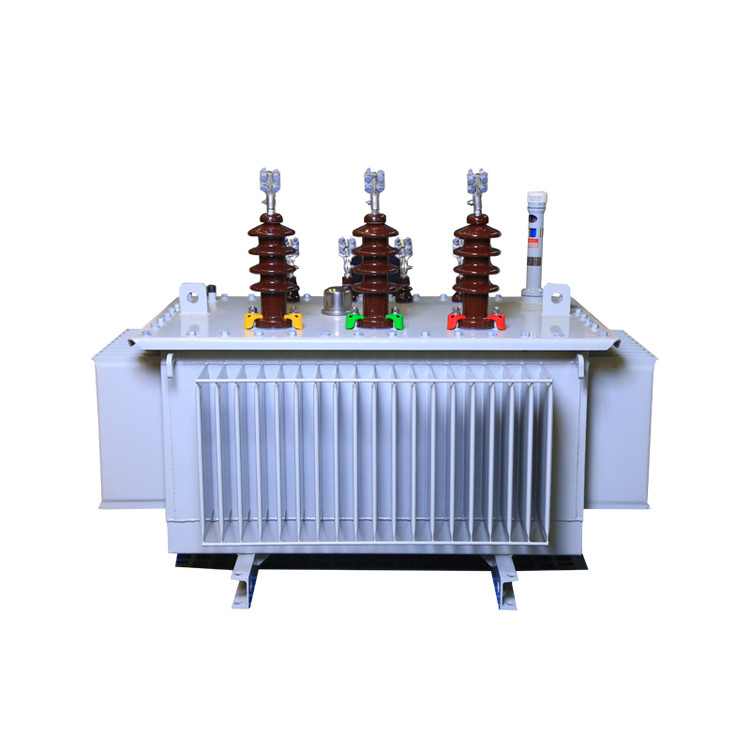

This product is an oil-filled sealing type.
The theory is the same as that of a closed-type power transformer.
The basic elements of amorphous alloy are iron, nickel, cobalt,
silicon, boron, carbon, and so on.
It is a kind of isotropic soft magnetic material with low magnetic
power and without structure defect which hinders the movement of
the domain wall.
It is extremely thin, only 0.027mm.
The filling coefficient is as smaller as 0.75-0.8, the specific
resistance is high which is about 3-6 times that of the silicon
steel plate and the hardness of it is 5 times that of silicon steel
sheet.
Amorphous alloy materials are highly profitable.
Technical data
| Rated Capacity (KVA) | High voltage (KV) |
Tapping Range | Low voltage (KV) |
Frequency (Hz) | Connectio n Symbol | No-load loss (W) | load loss (W) | No-load Current (%) | Short-circuit impedance (%) |
Gauge (mm) |
Dimensions L*W*H (mm) |
Weight (KG) |
| | | | | | S(B)H15 | S(B)H16 | S(B)H15 | S(B)H16 | | | | | |
| 30 |
6 6.3 6.6 10 10.5 11 |
±5% ±2X 2. 5% |
0.4 |
50 |
D.yn11 Y.ynO | 33 | 33 | 630/600 | 565/540 | 1.5 |
4 | 550 | 915*850*830 | 405 |
| 50 | | | | | | 43 | 43 | 910/870 | 820/785 | 1.2 | | 550 | 1040*775*870 | 515 |
| 80 | | | | | | 60 | 60 | 1310/1250 | 1180/1125 | 1.0 | | 550 | 1060*825*910 | 635 |
| 100 | | | | | | 75 | 75 | 1580/1500 | 1420/1350 | 0.9 | | 550 | 1140*830*855 | 745 |
| 125 | | | | | | 85 | 85 | 1890/1800 | 1700/1620 | 0.8 | | 550 | 1105*880*950 | 830 |
| 160 | | | | | | 100 | 100 | 2130/2200 | 2080/1980 | 0.6 | | 550 | 1125*880*1000 | 935 |
| 200 | | | | | | 120 | 120 | 2730/2600 | 2455/2340 | 0.6 | | 660 | 1235*895*1020 | 1090 |
| 250 | | | | | | 140 | 140 | 3200/3050 | 2880/2745 | 0.6 | | 660 | 1290*895*1065 | 1250 |
| 315 | | | | | | 170 | 170 | 3830/3650 | 3445/3285 | 0.5 | | 660 | 1375*835*1110 | 1465 |
| 400 | | | | | | 200 | 200 | 4520/4300 | 4070/3870 | 0.5 | | 660 | 1415*915*1245 | 1710 |
| 500 | | | | | | 240 | 240 | 5410/5150 | 4870/4635 | 0.5 | | 660 | 1360*1035*1175 | 1985 |
| 630 | | | | | | 320 | 320 | 6200 | 5580 | 0.3 |
4.5 | 820 | 1530*1115*1305 | 2390 |
| 800 | | | | | | 380 | 380 | 7500 | 6750 | 0.3 | | 820 | 1875*1205*1360 | 2755 |
| 1000 | | | | | | 450 | 450 | 10300 | 9270 | 0.3 | | 820 | 2035*1515*1355 | 3235 |
| 1250 | | | | | | 530 | 530 | 12000 | 10800 | 0.2 | | 820 | 2135*1515*1430 | 3815 |
| 1600 | | | | | | 630 | 630 | 14500 | 13050 | 0.2 | | 820 | 2255*1535*1500 | 4620 |
