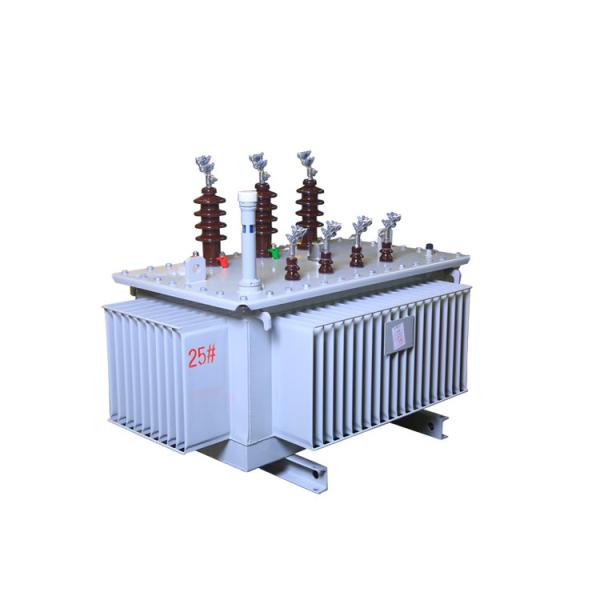

Amorphous Core 400KVA 500KVA Oil Immersed Type Transformer

    Buy cheap Amorphous Core 400KVA 500KVA Oil Immersed Type Transformer from wholesalers

    Buy cheap Amorphous Core 400KVA 500KVA Oil Immersed Type Transformer from wholesalers
    • Buy cheap Amorphous Core 400KVA 500KVA Oil Immersed Type Transformer from wholesalers

    Amorphous Core 400KVA 500KVA Oil Immersed Type Transformer

    Ask Lasest Price
    Brand Name : Knkong
    Model Number : S(B)H15/16 amorphous core
    Certification : ISO IEC CB
    Price : USD 1000-3000
    Payment Terms : L/C, T/T
    Supply Ability : 100 Unit per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Amorphous Core 400KVA 500KVA Oil Immersed Type Transformer

    Amorphous Core 400KVA 500KVA Oil Immersed Type Transformer


    Product Introduction


    This product is an oil-filled sealing type.

    The theory is the same as that of a closed-type power transformer.

    The basic elements of amorphous alloy are iron, nickel, cobalt, silicon, boron, carbon, and so on.

    It is a kind of isotropic soft magnetic material with low magnetic power and without structure defect which hinders the movement of the domain wall.

    It is extremely thin, only 0.027mm.

    The filling coefficient is as smaller as 0.75-0.8, the specific resistance is high which is about 3-6 times that of the silicon steel plate and the hardness of it is 5 times that of silicon steel sheet.

    Amorphous alloy materials are highly profitable.


    Company

    Responsibility: Production research and development MV& LV switch, outdoor&indoor VCB, power distribution terminals (DTU, FTU).

    Year of establishing: 10th-June-2009

    Registered capital:RMB102,000,000 (USD 15,000,000 )

    Company License: 91410104689749184A

    Manufacturing workshop area:20,000 square meters

    Company nature:private enterprise

    Number of Employees:180

    Senior engineer:20-30

    Annual sales volume on 2019:RMB200,000,000 (USD 26,000,000)


    Our Service:

    1. quick response before the sales period help you got an order.

    2. excellent service in production time let you know each step we made.

    3. reliable quality solves your after-sale headache.

    4. long-period quality warranty ensures you can buy without hesitation.


    Why Choose Us:

    1. One-stop supplier globally.

    2. More than 10 years of professional experience in the electrical appliance industry.

    3. We offer professional online technical support for perfecting your electrical solution free.

    4. Experienced sales service and suggestions.

    5. All the products with accessories under strict quality control and a final inspection before shipping.

    6. We can assure the powerful competitive price and reliable quality products.

    7. Most competitive shipping rate from our own shipping forwarder.

    8. Whatever big or small order, we can provide you one-to-one service.


    10KV-S(B)H15/16 Oil Transformer main technical data

    Rated Capacity
    (KVA)
    High
    voltage
    (KV)
    Tapping
    Range
    Low
    voltage
    (KV)
    Frequency
    (Hz)
    Connection
    Symbol
    No-load loss
    (W)
    load loss
    (W)
    No-load Current
    (%)
    Short-circuit
    impedance (%)
    Gauge (mm)Dimensions
    L*W*H (mm)
    Weight (KG)
    S(B)H15S(B)H16S(B)H15S(B)H16
    30

    6
    6.3

    6.6

    10

    10.5

    11

    ±5%
    ±2X 2. 5%
    0.450

    D.yn11

    Y.ynO

    3333630/600565/5401.54550915*850*830405
    504343910/870820/7851.25501040*775*870515
    8060601310/12501180/11251.05501060*825*910635
    10075751580/15001420/13500.95501140*830*855745
    12585851890/18001700/16200.85501105*880*950830
    1601001002130/22002080/19800.65501125*880*1000935
    2001201202730/26002455/23400.66601235*895*10201090
    2501401403200/30502880/27450.66601290*895*10651250
    3151701703830/36503445/32850.56601375*835*11101465
    4002002004520/43004070/38700.56601415*915*12451710
    5002402405410/51504870/46350.56601360*1035*11751985
    630320320620055800.34.58201530*1115*13052390
    800380380750067500.38201875*1205*13602755
    10004504501030092700.38202035*1515*13553235
    125053053012000108000.28202135*1515*14303815
    160063063014500130500.28202255*1535*1500

    4620
