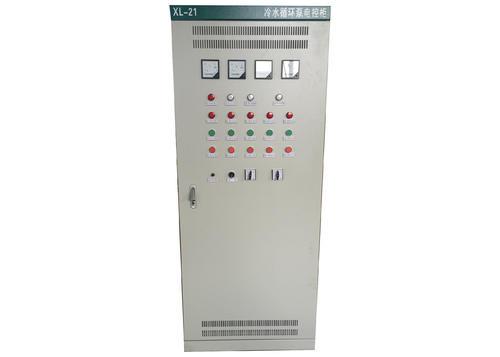

The XL-21 low voltage enclosed power cabinet is suitable for
three-phase three-wire, three-phase four-wire, and three-phase
five-wire systems with an AC voltage of 500V and below in power
generation and industrial and mining enterprises. For power
lighting and power distribution. The XL-21 low-voltage power
cabinet has the characteristics of flexible power distribution
scheme, convenient combination, strong practicability, and novel
structure.
Structural features:
1. The main electrical performance fully complies with the
requirements of IEC60439-1 and GB7251.1;
2. The auxiliary circuit has the functions of local, remote,
automatic control and local and remote control switching, and the
contactor can heat the relay for protection;
3. The power-receiving main switch has instantaneous tripping and
thermal-magnetic tripping protection options. In order to cooperate
with the next-level main switch, the instantaneous protection is
cancelled, avoiding over-level tripping, and has the functions of
self-turning, manual operation and automatic switching;
4. The main switch of the feeder circuit has instantaneous tripping
and thermal-magnetic tripping protection. When the user requires
it, leakage protection can be installed;
5. The motor control circuit has instantaneous short circuit,
overload, undervoltage release and phase failure protection.
Tech Parameter| Description | Unit | parameter |
|---|
| Rating voltage of the main circuit | V | Under 500V AV |
| Auxiliary circuit rated voltage | V | AC 220V 380V |
| Rating frequency | Hz | 50 |
| Rating insulation voltage | V | 660 |
| Rating current | A | ≤800 |
Working environment:
1. Temperature: -5~ + 40 ℃, and the average within 24h less than +
35 ℃.
2. Altitude: no more than 2000m.
3. The ambient air temperature, not more than 40℃; at lower
temperatures can have a higher relative humidity on (eg: + 20at
90%), taking into account the change in temperature allows the
generation of a moderate condensation.
4. Equipment installation and the vertical gradient should do not
exceed 5 °
5. Equipment should be installed in the absence of severe
vibration, shock-free, and corrosion-free place
6. Note: More than the above conditions can be negotiated with the
company.
Overall Dimension :
SLD Program:
