Indoor 20KA Breaking Switchgear Circuit Breaker Fixed Type VS1 Series

Product Categories

Knkong Electric Co.,Ltd

Contact Now

Indoor 20KA Breaking Switchgear Circuit Breaker Fixed Type VS1 Series

Ask Lasest Price
Brand Name :	KNKONG
Model Number :	VS1-12
Certification :	CB,ISO,IEC
Price :
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	1000 Unit per month
Delivery Time :	15 working days

Add to Cart

Product Details
Company Profile

Indoor 20KA Breaking Switchgear Circuit Breaker Fixed Type VS1 Series

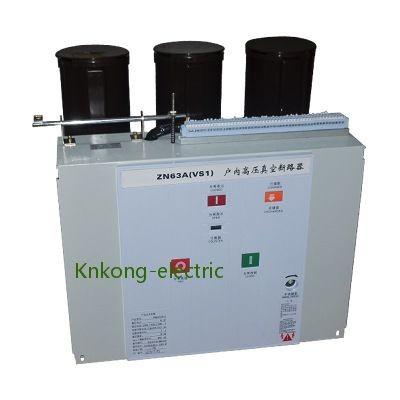

20KA Breaking indoor type switchgear using vacuum circuit breaker fixed type VS1 series

Voltage: regular 12KV

Current: max 2000A

Breaking current: 20KA

Type: Fixed

Phase spacing: 205

Product overview

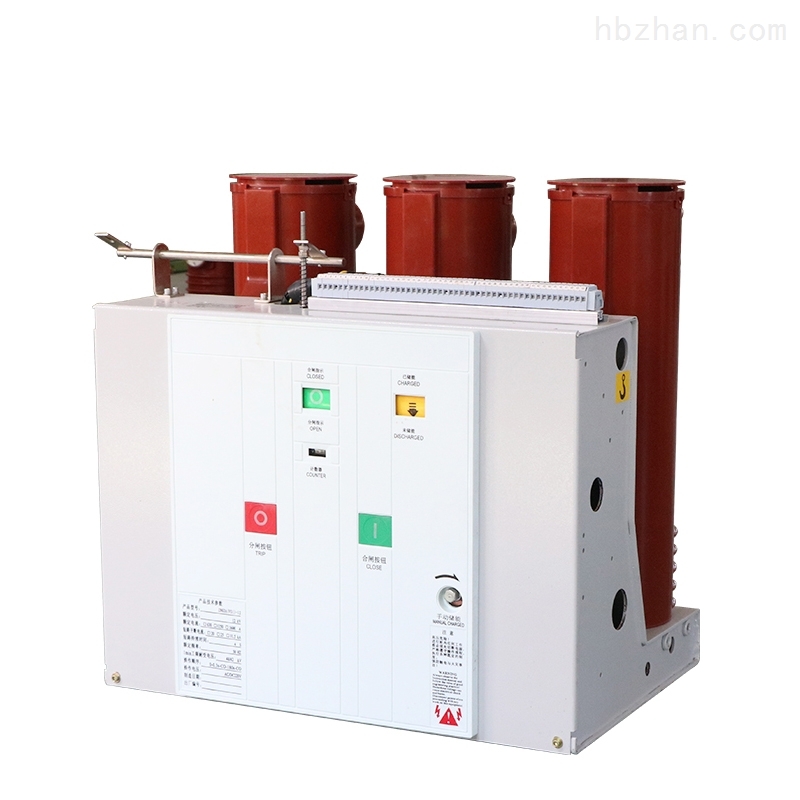

VS1 vacuum circuit breaker is used in 12kV, 24KV three-phase AC 50/60Hz indoor switchgear, and can be used for the protection and control of industrial and mining enterprises and substation equipment. The spring operating mechanism of VS1 series circuit breaker is a modular independent frame design, installed in KYN28-12 (24) centralized and fixed switch cabinets. The VS1 circuit breaker can be fixedly installed or used in combination with a trolley.

VS1-Series circuit breakers are Class M2.c2 and E2 model

VS1 series circuit breakers are maintenance-free and can be operated frequently. Compared with traditional circuit breaker products, the mechanical durability of VS1 circuit breaker has been improved from 10,000 ops to 20,000 ops, which is a huge improvement. The type test of capacitive current interruption shows a very low probability of re-arcing. VS1 has a long electrical life and free maintenance.

Technical Parameters

No.	Item		Unit	Parameter
1	Rated voltage		KV	12
2	Rated frequency		Hz	50/60
3	Rated insulation level	1min power frequency withstand voltage(r. m. s)	KV	42(phase-to-phase, phase-to-earth) 48(across the isolating distance)
		Lighting impulse withstand voltage (peak)		75(phase-to-phase, phase-to-earth) 85(across the isolating distance)
4	Rated current		A	630	630		1250		1600
				1250	1250		1600		2000
							2000		2500
							2500		3150
									4000
5	Rated short-circuit breaking current		KA	20	25		31.5		40
6	Rated short-time withstand current			20	25		31.5		40
7	Rated short-circuit marking current			50	63		80		100
8	Rated peak withstand current			50	63		80		100
9	Rated duration of short-circuit		s	4
10	Rated operating sequence			O-0.3s-O/C-180s-O/C
11	Breaking times of rated short-circuit current		Times	30/20 times(40KA)
12	Mechanical endurance		Ops	20000
13	Rated single capacitor bank breaking current		A	630
14	Rated back-to-back capacitor bank breaking current			400
15	Double-earth fault breaking current			27.4
16	Allowable maximum contact erosion		mm	3
17	Clearance between open contacts			10±1
18	Over stroke			3.5±0.5
19	Non-simultaneity of 3-phase opening and closing		ms	≤2
20	Bounce duration of contact closing			≤2
21	Average breaking speed (instant breaking 6mm)		m/s	1.1±0.2
22	Average making speed			0.8±0.2
23	Making time		ms	≤100
24	Breaking time			≤50
25	Resistance of each phase main circuit		μ Ω	630A			≤50
				1250A			≤45
				1600A~2000A			≤35
				≥2500A			≤25
26	Contact breaking bounce amplitude		mm	≤2
27	Rated operating voltage	Rated operating voltage(V)AC/DC	V	24*		110		220
		Scope of normal operation voltage		Opening:65%-120% rated voltage, in case the voltage is lower than 30% rated voltage, opening operation is not allowed
28	Rated voltage of energy storage motor		V	AC110/220,DC110/220
29	Energy storage time		S	≤15
