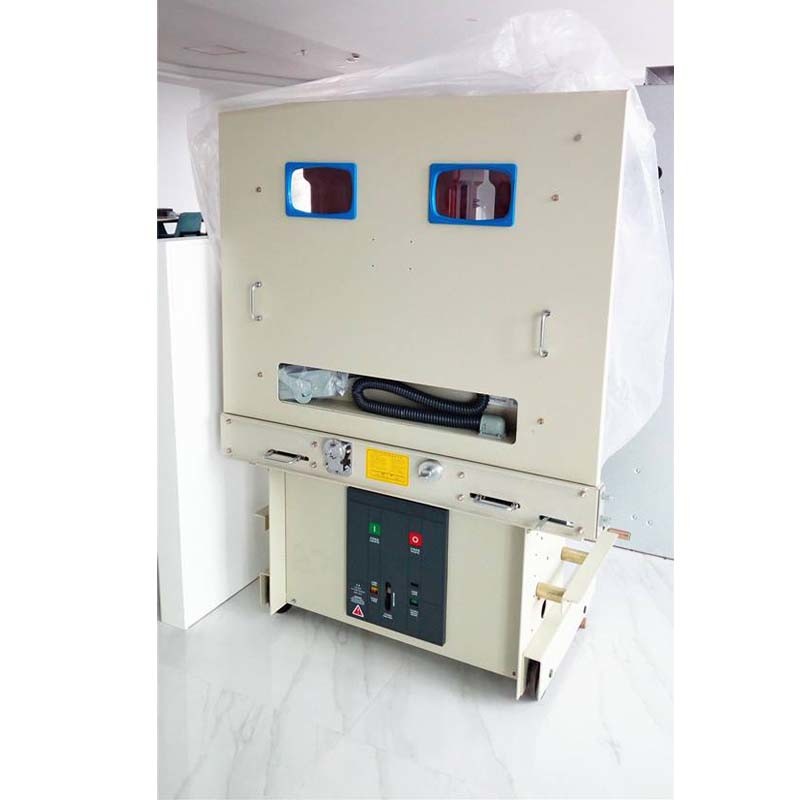

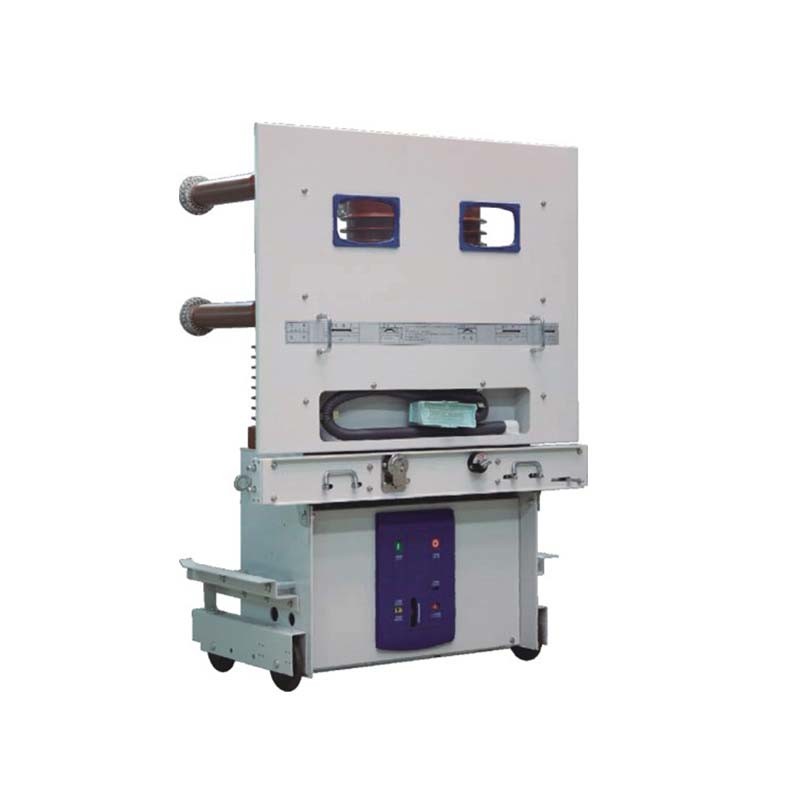

Indoor VCB Sleeve or Embedded pole 12-40.5KV,three-phase 50HZ
400/630A, AC/DC 110/220V CCC,ISO9001,CE, CB,IEC60898
Product Introduction
Structure Features
1. Reliable modular spring operating mechanism: the layout of the
spring operating mechanism is up-down style, which has the function
of manual storing energy and electric storing energy; Small size,
good overall stiffness, and performance

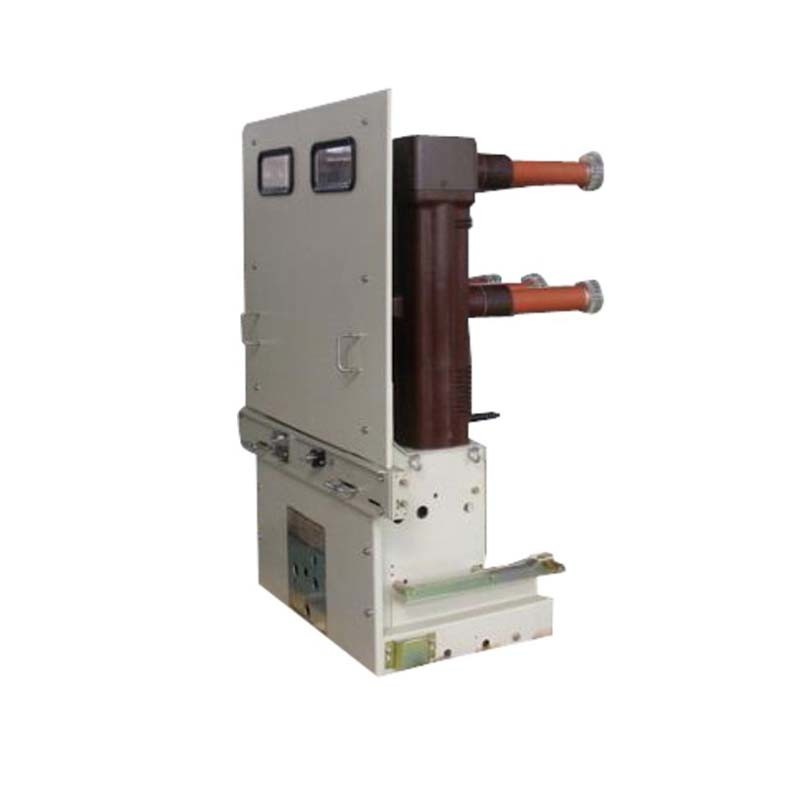

2. Sleeve structure(VS1-40.5): The vacuum extinguishing chamber of
the main circuit is inside the closed insulating drum; The material
of the insulating drum is epoxy resin which has reliable mechanical
and electrical properties. Using advanced APG process molding, the
insulating drum has the role of support and interphase and relative
insulation effect
3. Encapsulated pole structure(VS1-40.5E): The conductive circuit
adopts solid encapsulation pole; Using advanced APG process
molding, put the vacuum interrupter and other parts (for primary
circuit ) solid encapsulated with epoxy material, make the main
circuit module. With inside and outside double skirt design, the
pole has features such as large creepage distance, high mechanical
strength, high part accuracy, fewer parts, no secondary
adjustments, and a small lapped surface
4. Standard on-off function module: Modular design spring
mechanism, which includes two functional modules: closing and
opening; It has the characteristics of convenient maintenance,
quick replacement, and short maintenance time; No readjustment for
the entire circuit breaker’s operating mechanism after replacing
the closing and breaking module, which can reduce maintenance work
5. Better handcart interchangeability and adaptability,
installation size and ZN85, VD4, and other products; Strong
breaking ability, long service life
Normal service condition
| Altitude | ≤1000m |
| Ambient temperature | Max | +40℃ |
| Min | -15℃ |
Ambient humidity: Maximum average humidity | 24 hour ≤95% |
| 1 month ≤90% |
| Maximum water vapor pressure | 24 hours ≤2.2kpa |
| 1 month ≤1.8kpa |
The ambient air has no obvious pollution of dust smoke, corrosive
or combustible gases, steams or smog
VS1-40.5/E Technical Parameters
| No. | Item | Unit | Parameter |
| 1 | Rated voltage | KV | 40.5 |
| 2 | Rated frequency | Hz | 50 |
| 3 | Rated power frequency withstand voltage/1 min | KV | 95 |
| 4 | Rated lightning impulse withstand voltage | KV | 185 |
| 5 | Rated current | A | 630 1250 1600 2000 2500 |
| 6 | Rated short-circuit breaking current | KA | 20 25 31.5 |
| 7 | Rated short-time withstand current | KA | 20 25 31.5 |
| 8 | Rated short-circuit marking current | KA | 50 63 80 |
| 9 | Rated peak value of withstanding current | KA | 50 63 80 |
| 10 | Rated duration of short-circuit | s | 4 |
| 11 | Rated operating sequence | | O-0.3s-CO-180s-CO |
| 12 | Breaking time | ms | ≤80 |
| 13 | Mechanical endurance | times | 10000 |
| 14 | Rated single capacitor bank breaking current | A | 400/630 |
| 15 | Rated short circuit breaking current breaking times | times | 30 |
| 16 | Size (length*width*high) | mm | 1246*1700*905 |
| 17 | Rated voltage of energy storage motor | V | AC110/220, DC110/220 |
| 18 | Weight | Kg | 466 |
Mechanical Properties Parameters
| No. | Item | Unit | Parameter |
| 1 | Clearance between open contacts | mm | 18±2 |
| 2 | Over stroke | 3.5~4 |
| 3 | Rated power of energy storage motor | W | 230 |
| 4 | Energy storage time | s | ≤15 |
| 5 | Bounce duration of contact closing |
ms | ≤3 |
| 6 | Non-simultaneity of 3-phase opening and closing | ≤2 |
| 7 | Breaking time | ≤70 |
| 8 | Making time | ≤90 |
| 9 | Break-brake bounce | m | ≤3 |
| 10 | Average breaking speed | m/s | 1.7±0.3 |
| 11 | Average making speed | 0.7±0.3 |
