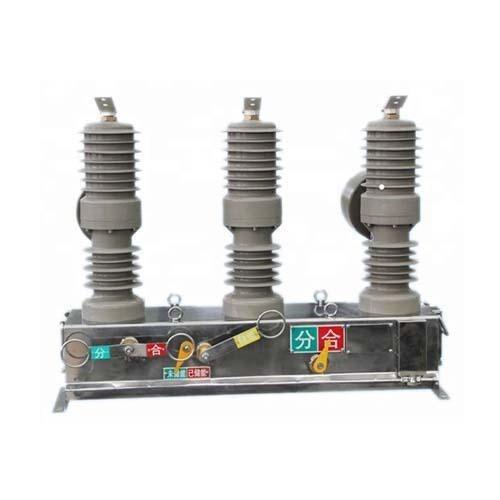

    ODM ZW32 VCB Circuit Breaker 12kv Outdoor Vacuum Circuit Breaker

    Ask Lasest Price
    Brand Name : KNKONG
    Model Number : ZW32
    Certification : ISO9001:2015,CCC,ISO9001,CE, CB,IEC60898
    Price : USD 1000-2000 Each
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 unit per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    ODM ZW32 VCB Circuit Breaker 12kv Outdoor Vacuum Circuit Breaker

    ZW32 VCB Three-phase12kv outdoor Vacuum Circuit Breaker 50HZ 630A/1250A OEM & ODM CCC,ISO9001,CE, CB,IEC60898

    12kv Outdoor Vacuum Circuit Breaker

    12kv outdoor VCB
    AC three-phase, 50HZ
    630A, 1250A
    OEM & ODM,Complete equipment
    CCC,ISO9001,CE, CB,IEC60898
    Inquire

    Product Introduction

    12kv outdoor VCB (ZW32 series) spring mechanism outdoor vacuum breaker, a kind of outdoor pillar high voltage vacuum circuit breaker, with 50Hz, three-phase alternating current, and 12 KV rated voltage.

    Standards compliant of CCC,ISO9001,CE, CB,IEC60898.

    It applies to open circuit, close the load current, overload current and short -circuit current and other power distribution system, such as a substation, industrial and mining.

    12KV 630A/1250A ZW32 series VCB for outdoor use, such as power transmission network or substation poles.


    Features

    • High reliability, high mechanical and electrical life;
    • No maintenance;
    • Small size, lightweight, easy to install;
    • Standard relay protection and quick automatic reclosing function;

    Normal service condition

    Altitude

    ≤1000m

    Ambient temperature

    Max

    +40℃

    Min

    -15℃

    Ambient humidity:

    Maximum average humidity

    24 hour ≤95%

    1 month ≤90%

    Maximum water vapor pressure

    24 hours ≤2.2kpa

    1 month ≤1.8kpa


    The ambient air has no obvious pollution of dust smoke, corrosive or combustible gases, steams or smog


    12kv Outdoor VCB Technical Parameters

    No.ItemsUnitParameter
    1Rated voltageKV12
    2Rated currentA630 1250
    3Rated frequencyHz50/60

    4


    1 minute

    withstand pressure

    Wet

    KV

    34
    Dry42
    To ground49

    5

    Lightning shock withstand current phase, to

    ground

    KV


    75/85

    6Rated short-circuit breaking current

    KA

    20 25
    7Rated short-circuit closing current50 63
    8Rated peak value of withstanding current50 63
    94s short-time withstand current20 25
    10Rated operating sequenceO-0.3s-CO-180s-CO

    11

    Rated short circuit breaking current breaking

    times

    times


    30

    12Mechanical endurance30000
    13Permanent magnet control voltageVAC/DC 220

    14

    Secondary circuit, 1-minute power frequency

    withstand voltage

    KV


    2


    Standard Drawing


    ODM ZW32 VCB Circuit Breaker 12kv Outdoor Vacuum Circuit Breaker
