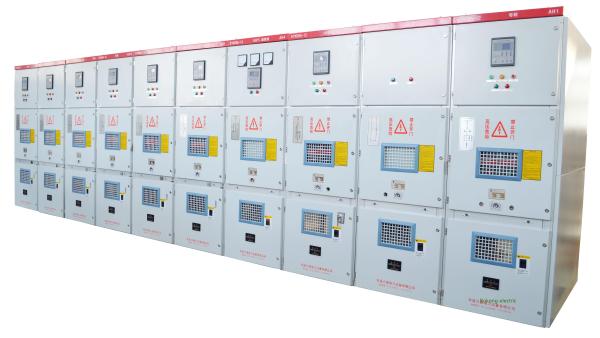

    6.6KV 1250A 2000A Metal Enclosed Mv Switchgear Panel IP4X

    Ask Lasest Price
    Brand Name : Knkong
    Model Number : KYN28A-3.3KV
    Certification : IEC
    Price :
    Payment Terms : L/C, T/T
    Supply Ability : 100 Unit per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    6.6KV 1250A 2000A Metal Enclosed Mv Switchgear Panel IP4X

    KYN28 GB IEC standard 6.6KV 12KV 24KV 630A 1250A 2000A Metal Enclosed panel
    Voltage: 3.3KV 6.6KV 12KV 24KV
    Current: 630A 1250A 2000A
    Frequency: 50/60Hz
    General
    KYN28-12KV indoor use switchgear produced by KNKONG-ELECTRIC, its rated voltage 3.6~24kV, three-phase, AC, 50/60Hz, single bus section system. The KYN28 series switchgear made by our KNKONG-ELECTRIC can not only use the VS1 series vacuum circuit breaker made in China but also can be equipped with ABB's VD4, Siemens ZN65A 3AH5, GE's VB2, and other vacuum circuit breakers and components.

    Fully type-tested

    The KYN28 switchgear produced by KNKONG-ELECTRIC has passed all the tests required by the International (IEC) standard. Before leaving the factory, each switchgear undergoes rigorous tests designed to check the function of the switchgear according to the specific characteristics of each device.


    Technical data

    No.ItemUnitParameter
    1Rated voltagekV3.6~24
    2Rated frequencyHz50/60
    3Rated currentA630,1250,1600,2000,2500,3150,4000
    4Branch busbar Rated current630,1250,1600,2000,2500,3150,4000
    5The main busbar Rated current630,1250,1600,2000,2500,3150,4000
    6

    1min Power frequency

    withstand voltage

    wetKV3850/60
    dry4860/65
    7Lightning impulse withstand voltagekV7595/125
    8Rated short circuit breaking current (peak)KA40/50/63/80/100
    9Short-time withstand current(4s)20/25/31.5/40
    10Protection typeIP4X for housing
