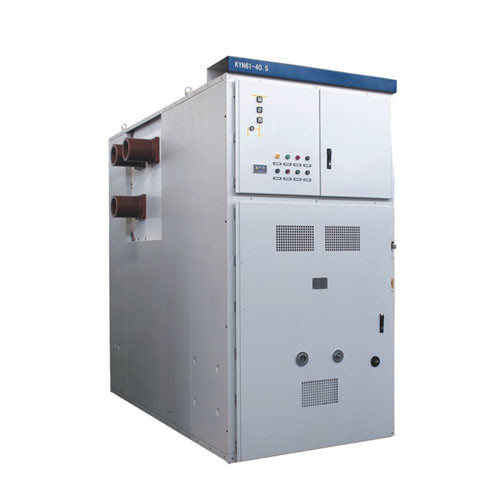

ISO GB 40.5KV Outdoor Medium Voltage Switchgear KYN61A

40.5KV 2000A KYN61 IEC ISO GB electrical switchgear panel

33KV switchgear panel, metal-clad MV switchgear power switchgear panel

KYN61-40.5KV medium voltage switchgear,
Knkong/ABB/Schneider VCB
40.5KV, 3-phase, AC 50/60Hz
Complete ISO IEC standard
For design switchgear SLD plan and layout plan (Single Line Drawing) service please inquiry by email.

Inquire

Product Introduction

KNY61-40.5 3P 50Hz 2000A can be equipped with ABB/Schneider/Knkong(VS1 series 40.5KV VCB).

Using environment:

a) Air temperature: -25℃~+40℃

b) Humidity: Monthly humidity 95%; Daily humidity 90%.

c) Altitude no more than 2500m

d) Ambient air not apparently polluted by corrosive and flammable gas, vapor, etc.

e) No frequent violent shake

Technical data

Items		Unit	Data
Voltage		KV	40.5
Frequency		Hz	50
Current		A	1250,1600,2000
Short-circuit Breaking Current		KA	25,31.5
Making Current (Peak)		KA	63,80
4s Thermal Stability Current		KA	25,31.5
Dynamic Current (Peak)		KA	63,80
Insulation Level	1min Power Frequency Withstand Voltage (r.m.s)	KV	95
	Lightning Impulse Withstand Voltage (Peak)	KV	185
	1min Power Frequency Voltage Across the open gap (r.m.s)	KV	118
	Lightning Impulse Withstand Voltage Across the open gap (Peak)	KV	215
Enclosure Protection Class			Enclosure IP4X, Between Compartments IP2X
Enclosure Dimension (WidthDepthHeight)		mm	140028002600 160028002600
Type of Circuit Breaker			VCB: ZN85-40.5 SF6 Circuit Breaker

*Note: order switchgear should provide SLD(Single-line diagram) by customer

Main components characteristics:

VS1-40.5 Indoor Vacuum Circuit Breaker

Rating voltage: 40.5kV

Rating current: 630 1250 1600 2000 2500A

Rating short circuit breaking current: 20 25 31.5KA

Mechanical life: no less than 20,000 times

VS1-40.5 Technical data

Items	Unit	Date
voltage	KV	40.5
short-time power frequency withstand voltage (1min)		95
lightning impulse withstand voltage (peak)		185
frequency	Hz	50/60
current	A	1250 1600 2000 2500 4000
short-circuit drop-out current	KA	25 31.5
short-time withstand current	KA	25 31.5
short-time continual time	s	4
peak withstand current	KA	63 80
short-circuit closing current	KA	63 80
single/ back-to-back capacitor bank drop-out current	A	630/400
Opening time (rated volt.)	ms	35~60
Closing time (rated volt.)	ms	50~100
Mechanical life	times	20000
break times for rated short drop-out current	s	20
operation voltage	V	AC110/220 DC110/220
current of power storing motor	W	230
Average opening speed	m/s	1.6~2.0
Average closing speed	m/s	0.5~0.8
operation procedure		opening-0.3s-closing opening-180s-closing opening
