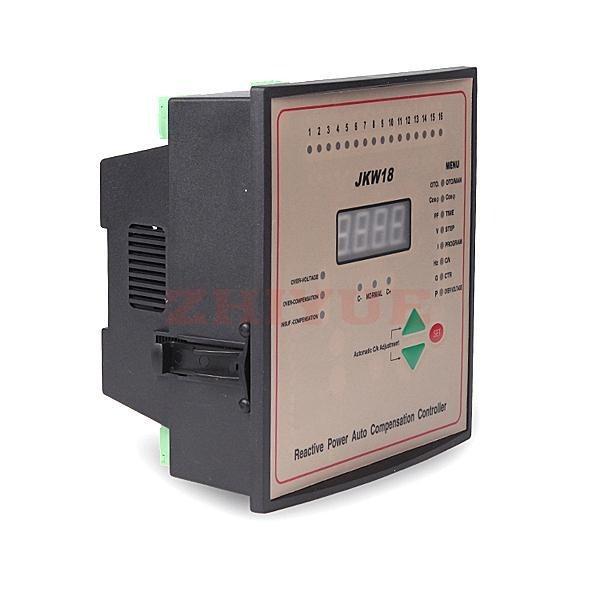

JKW18 Reactive Power Auto Compensation Controller Low Voltage Parts

Home Spare parts JKW18 Intelligent Reactive Compensation Controller

JKW18 Intelligent Reactive Compensation Controller

JKW18 series intelligent low voltage reactive auto compensation controller are used for measurement and control of power factor control units for centrlaoyu al reactive power compensation. The POWER FACTOR measured by JKW18 is compared with the set point values and in order to provide necessary compensation , Power Factor Controller switches capacitor banks ON and OFF automatically

Inquire

Product Introduction

Technical Data:

Rated Voltage (Un)	220,230,240 VAC (Phase Neutral Connection )
Rated Voltage (Un)	380,400,415 VAC(Phase-Phase Connection)
Operating Voltage Range:	(0.9-1.1)x Un
Rated Current(In):	./5A
Operating Current Range:	(0.91-1.1) X In
Rated power	Voltage: 3VA-10VA
Output Contact	3A, 750 VA (NO Contact)
No-Voltage Feature	in case of power failure longer than 200 msec. all capacitor steps are disconnected automatically .
Setting Range	C/K:0.02-1.0Steps: 1-12 COS￠ :0.85(ind.)-1.00
