XL21 Motor Control Center Panel AC 660V Low Voltage Switchgear

KNKONG-ELECTRIC XL-21A 500V IEC ISO GB Electrical control cabinet MCC panel lighting control box

XL-21A electrical distribution switchgear panel

Voltage: under 500V
Insulation voltage: AC 660V
Frequency: 50 /60 Hz
Current 800A
Short-term tolerance current ability lew: 10KA

Inquire

Product Introduction

Technical data

Voltage: AC under 500V

Insulation voltage: AC 660V

Frequency: 50 /60 Hz

Current: ≤800A

Short-term tolerance current ability lew: 10KA

Dielectric Strength: 2500/1min

Material: stainless steel (SUS 304) /Cold rolled plate /Galvanized sheet (GI)

Thickness: 1.0mm-3.0mm

Application: Electric Power Transmission and distribution.

Protection: IP30

Open the direction: The opening Angle is equal to or greater than 135°

StandardS and certificate: GB7251.1-2005 ISO9001 CE /ISO /CCC /IEC 60439-1

XL-21 series power distribution box is suitable for power distribution and lighting distribution of three-phase four-wire power system with AC frequency of 50HZ, voltage of 500V and below, in industrial and civil buildings. At the same time, it is suitable for making various motor starting cabinets, including full-voltage direct starting cabinets, full digital control soft starting cabinets, auto-coupling step-down starting cabinets, star-delta starting cabinets, multi-speed motor starting cabinets, etc. There are dozens of primary circuit plan numbers or derivative plan numbers for selection, and a wide range of applications.

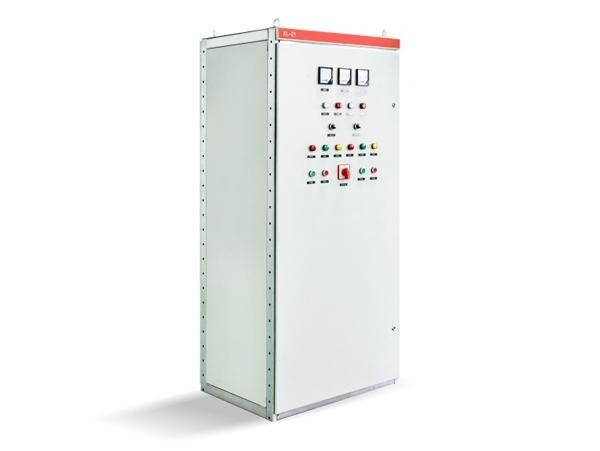

This product is an indoor closed distribution box. The box body is made of thin steel plate by bending and welding. The front side is a single left-opening door. The door is equipped with measuring instruments such as voltmeter and ammeter, operating appliances, signal appliances, etc. It is a kind of power with simple structure, reliable operation and low cost. Power distribution device

**Tech Parameter**
Description	Unit	parameter
Voltage of the main circuit	V	Under 500V AV
Auxiliary circuit rated voltage	V	AC 220V 380V
Frequency	Hz	50
Insulation voltage	V	660
Current	A	≤800

Overall Dimension :

SLD Program:

XL21 Motor Control Center Panel AC 660V Low Voltage Switchgear
